This is a document that presents OnMind-XDB (OnMind's eXpress database edition) to accompany projects and as a knowledge base or technical reference and use mainly local. OnMind-XDB has no licensing cost, nor any warranty, but it is possible to move to an enterprise scheme with the OnMind platform and its products. It has been written using Kotlin language.

Another free database version, intended to be called OnMind-WDB (Wide/Web Database), is also being designed for cloud purposes. It is considered to use KotlinJS.

OnMind-XDB use cases

OnMind-XDB can be very useful in personal or academic projects, and for small business applications. However, its potential can be used in integration projects (see video at the end interacting with MuleSoft), even blogs (such as headless-cms) or as a large datasheet..

Another key facet is to focus on Mockup, for agile prototyping of the user interface. As well as to support digital marketing functionalities, and agile projects.

Perhaps a specific version for Mobile or IoT (Internet of Things) could also become considered. In fact, the OnMind-WDB version has been under design for the Cloud.

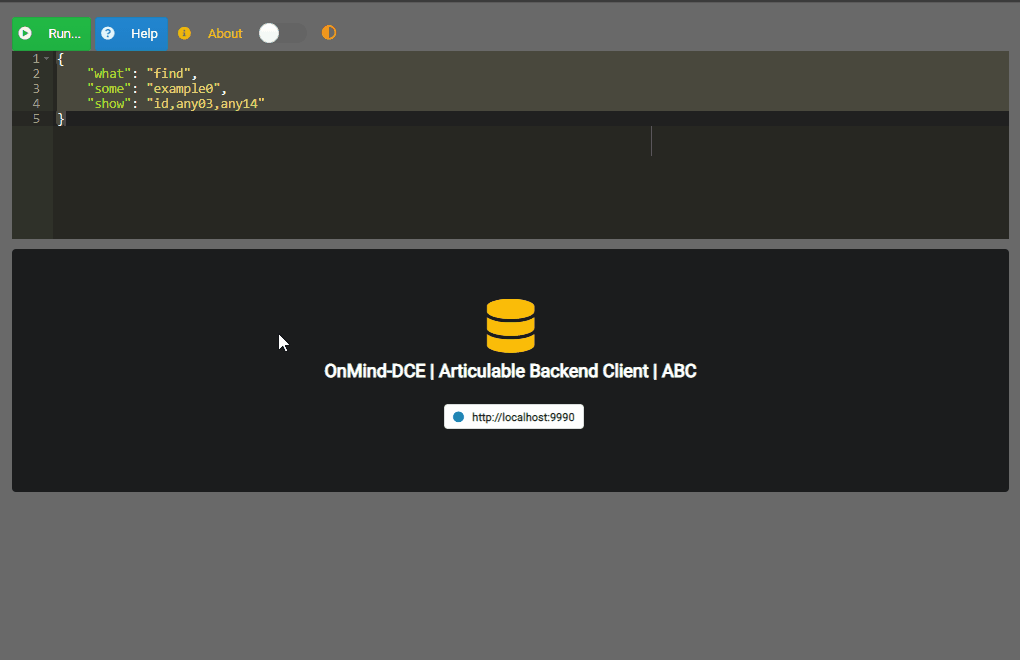

The first thing you must do to use this program is to download the portable software, read the README.md file and execute the respective onmind-xdb... file. Then you can create your first object, for example, by copying the following into the program:

{
    "what": "create",
    "some": "example"
}

CTRL + R is used to execute the sentence

Essential usage example

If you have advanced technical knowledge, we will make a slight parenthesis before the conceptual introduction, which of course we invite you to review to understand the context. OnMind-XDB is a NoSQL database that implements an API (Application Programming Interface) with JSON (Javascript Object Notation) for querying and managing information, which has been called "Articulable Backend Controller", or "Articulable Backend Client" when it is an application (client), and is a proposal of the author of OnMind as a specification or technological standard that can be illustrated with the example below:

{
    "what": "find",
    "some": "example",
    "show": "id,any02,any03"
}

It can be observed that what, some and show are indicated to represent respectively "what action", "about what thing" and "what to show". In this essential example the action is find, the thing is example and then the data to show is listed separated with commas (,).

Of course you can apply a criterion or condition to filter information (for which you would use the with element) but this can be found further in this documentation. Since data is displayed only if it is found or exists, let's see an essential example on how to add the information, considering that certain predefined attributes will be used: any02 (id), any03, etc.

{
    "what": "insert",
    "some": "example",
    "puts": {"any02":"01","any03":"Andrey"}
}

Here we can say that the action is insert, the thing is example but then appears the puts element where the data is reported in JSON(if the service is to be consumed, data are sent separated by semicolons ; as will be seen later).

Of course, before inserting information, the thing must have been defined (some), let's see how...

{
    "what": "create",
    "some": "example"
}

The main endpoint is usually: localhost:9990/abc. The most appropriate is to follow the steps in reverse order.
In this essential example, certain principles that illustrate an idea have been exposed. For now we invite you to review the concepts and context of this technological proposal.

About the Author

César Andrés Arcila...

What is a Database?

Is a mechanism and computer program in which duly organized data are stored. It may give us a vague notion if we imagine classical libraries or physical archives applying this to the world of information technology. Generally, business applications make use of a database manager (or engine) that belongs to a different manufacturer and can generate an additional cost, although there are decent alternatives to databases without generating licensing costs (different when it involves the support). In many cases, to access the information these data engines use a structured query language (known as SQL), alternatively, those managers that do not use it fall into a group called NoSQL.

What is a Database for?

Databases enable fast and organized access to data and power software applications that are typically in the business or analytical fields, as well as various domains. While some database principles can be applied through spreadsheets in an artisanal way, this would not be comparable to a database engine as such. In fact, this type of technology is also known as a database management system (DBMS) and is applicable to businesses of any size and is the basis for obtaining business information, which is key.

What is OnMind-XDB?

It is the OnMind community edition database manager that can be installed locally. OnMind-XDB is based on an internal version of the platform, and is released in a decoupled mode (external or independent of the OnMind platform) and without the graphical user interface. It is classified as NoSQL since instead of SQL it implements an API (Application Programming Interface). OnMind-XDB has a local focus and does not include a backup mechanism., with the understanding that it is easy to find additional tools to backup local files and cover such activity (e.g. Cobian Backup or FreeFileSync).

OnMind-XDB is not an ideal product for the cloud or to handle a file that exceeds 1GB, for that you find another product from OnMind. The proposal of this database manager implies that media files, such as images, videos or documents, are managed by other mechanisms such as a simple folder (or a cloud service like Dropbox). That is, the product is designed for flat data or references to external files (links) and not for storing such files. Therefore, data storage can be 10MB to start with and to reach 1GB (a thousand times the initial size) requires a few years of use or a high volume that would speak well of the size of a business.

What does ABC mean?

It means "Articulable Backend Controller" (ABC), it also applies to a function or client application (Articulable Backend Client). It is a specification for web requests that is derived from the programming language ABCode, by the same author of OnMind (César Andrés Arcila), i.e., it is a proposed standard for making requests to a microservice API. The main endpoint is usually localhost:9990/abc.

What is ANY and what is it used for?

Although some examples might suggest an open concept, the specific implementation of OnMind uses a repository with a pre-established structure known as ANY which can be thought of with the analogy of a datasheet (or big-table). What this means is that there is a large collection and what is actually done is to map the available fields or properties. Let's look at these fields in a general way:

Field	Description
id	Reserved as internal identifier and primary key
any01	Reserved for candidate key (internally composed, using any02)
any02	Code that composes the candidate key (required). Your key (or id)
any03	Name or title (usually short)
any04	Description associated with the data or the record
any10	Text data longer than the others
any11	Initial free data (01)
...	...
any60	Final free data (50)

The free data comprises a series of fields between any11 and any60 (50 positions). Normally these fields are mapped considering the appropriate application of the fields above any11. Some fields are reserved for internal compatibility (e.g. any05 ... any09).

If you are questioning whether the OnMind repository concentrates or overloads the ANY structure, this depends on how you look at it. The OnMind Method is what inspires the repository, where ANY only corresponds to what is described as something Extra (dynamic, for anything), so the full implementation would actually be more targeted and better distributed. Although the information can be concentrated in certain cases that have been observed for more than 5 years with the use of what we can call Big-tables. This also requires a change of mentality, openness and is not suitable for those who generate fear or do not see the potential of Big-data in this sense.

Evidently, when thinking about a mapping, a logical or abstract model is required in the application (client or frontend) and this may result in information security as the exact model is unknown without a client application or mechanism specifying it.

How to use OnMind-XDB? (Technical Learning)

Requests to the API have a standard that is received and managed by the "Articulable Backend Controller" (ABC). The main endpoint is usually: localhost:9990/abc. While in Javascript you can use fetch directly, our client or controller presents a high-level specification like the following:

{
    "what": "find",
    "some": "persons",
    "with": "any03 = 'peter'"
}

Summarizing, we would have the possible attributes in the following table:

Sentence	Description
what	Actions find, insert, update, delete, create, drop. In addition, it can be invoke, in which case name is used instead of some
some	Collection or datasheet (table)
with	Query criteria or filter. It can also accompany name indicating an external address (gateway)
how	Applicable fields or methods (such as order, limit, etc.)
show	Data to show
puts	Data to place
cast	Used in case of needing to report associated data types separated by commas (,)
name	Allows to invoke method or plugin of the API using puts (and with). It is thought as a function router and avoids routes in the url
user	User to be used. Can be reported by the client application
role	Role under which the request would be executed
pass	Application pass word
auth	Session authentication token. Applies from frontend code (for API-Rest request).

Other OnMind products or versions implement from and pin. from refers to archetypes applicable only for OnMind platform repository. pin is the "Private Identity Nomenclature" for managing corporate identity.

If the question arises as to whether it is possible to solve queries as in SQL (Structured Query Language) the simple answer is no. Being a NoSQL database it is not possible to solve queries in the same way. However, there are alternative technologies such as GraphQL which is oriented for API. Of course, this suggests that something must be implemented on the client side when the API does not cover certain specific queries, but that is the mode that has been trending and where GraphQL can be introduced, although to a lesser degree than with other API since many queries are resolved directly with our technology as we will see below. Surely in the future the API can be extended to not depend on GraphQL in those specific cases.

The what, some, with, puts, show or how attributes are used to set a pattern in the query. You use some for the collection or table, what for the action (find, insert, update, delete, create, drop), with for the search criteria or filter, and how for supplementary indications (e.g. order, limit). show when you find something and puts could be included for insert or update operations. Let's see the concept with examples.

create

{
    "what": "create",
    "some": "persons"
}

create is the first statement to use before inserting something that has not been defined. In this case, show can be used to report a title or name for the human, and with could be used to indicate the internal module in the case of the OnMind platform (by default SHEET is assigned). user is required but can be reported by the client application

find

{
    "what": "find",
    "some": "persons",
    "with": "any03 = 'peter'",
    "show": "any03 name, any11 age"
}

For find use show separated with ,, and with use filter in SQL.

insert

Assuming any03 is the name and any11 is the age, we would have:

{
    "what": "insert",
    "some": "persons",
    "puts": {"any03":"peter","any11":25}
}

In this example of insert we use puts with {} (JSON)...

If you want to use an external tool like Postman, you must add a Pre-request Script (located next to the Body), which consists of a javascript code of only 3 lines to express puts in a string (escaping the data), like this:

let raw = JSON.parse(pm.request.body.raw);
raw.puts = JSON.stringify(raw.puts);
pm.request.body.raw = JSON.stringify(raw);

update

Assuming we know the id and any11 is the age, we would have:

{
    "what": "update",
    "some": "persons",
    "with": "1234567890",
    "puts": {"any11":20}
}

In this case, puts sets age = 20, and with refers to the id.
The use of escaped puts is applied when consuming the external mode service, e.g. from Postman (or using a Pre-request Script to avoid the escape).

delete

Similar to the previous sentence, we would have:

{
    "what": "delete",
    "some": "persons",
    "with": "1234567890"
}

invoke (name)

On the other hand, the way to use name to extend invocations to microservices on the platform (generally external or complementary) does not apply to OnMind-XDB (except login). It is a feature being developed for use with programming language ABCode. The example would be as follows:

{
    "what": "invoke",
    "name": "statistics",
    "with": "localhost:3333/abc",
    "puts": {"year":2021}
}

with is only used when dealing with an external microservice (as a gateway) or a script (e.g. py, js, ts, lua, go). Security is another matter that can be covered in a variety of ways.

OnMind-XDB & Mule ESB

One of the use cases of OnMind-XDB (or higher distributions) is integration. There is software such as Mule ESB that can access web requests and thus use OnMind-XDB as data persistence.

It should be considered that requests are made with the post verb and the body is sent in json, this is why a language like DataWeave is used to transform the content (both in the body and in the response). For example, we could report our body like this:

%dw 2.0
output application/json
---
{
    "what": "find",
    "some": "example"
}

Note that the syntax above is close to Javascript (with a header before ---).
As an alternative to DataWeave, Mule allows the use of Scripting languages (e.g. Python, Lua, Groovy) or Java itself.

In the xml file of a project with Mule, an example flow to illustrate the use of OnMind-XDB would have a content like the following:

<http:listener-config name="myapi-Listener-Config">
    <http:listener-connection host="0.0.0.0" port="8081" />
</http:listener-config>

<http:request-config name="OnMind-XDB" doc:name="HTTP Request config">
    <http:request-connection host="localhost" port="9990"/>
</http:request-config>

<flow name="myFlow">

    <http:listener doc:name="Listener"
        config-ref="myapi-Listener-Config" path="/api"/>

    <http:request method="POST" doc:name="Request"
        config-ref="OnMind-XDB" path="/abc">

        <http:body ><![CDATA[#[%dw 2.0
output application/json
---
{
"what": "find",
"some": "example"
}]]]></http:body>

    </http:request>

    <set-payload value="#[payload]" doc:name="Set Payload" mimeType="application/json" />

</flow>

If we add a Mule message transformer, it is possible to define the type of the response using DataWeave, for example:

%dw 2.0
output application/json
---
payload map ( item , indexOfItem ) -> {
    id: item.id,
    code: item.any02,
    name: item.any03
}

To understand the concept of this use case it is best to watch the video that has been prepared.

---
